Easy Installation Compact Heavy Duty Vehicle Ship Ignition Protected MRBF Marine Rated Battery Fuse 58V 300A

Easy Installation Compact Heavy Duty Vehicle Ship Ignition Protected MRBF Marine Rated Battery Fuse 58V 300A

The MRBF Fuse provides easy, weatherproof and economical circuit protection in tight space constraints. The fuse is installed between the positive battery terminal stud and the positive battery cable with the help of a special clamping fixture. Marine Rated Battery Fuses are a practical and economical method for safe operation of your power inverter.

A battery is an unlimited source of current. If there is a short circuit along the length of the cables that connect the battery to the inverter, thousands of amperes of current can flow from the battery causing shorting: a section of the cable can overheat, the insulation can melt and the cable can ultimately break. This interruption of high current can generate hazardous, high temperature, high energy arc accompanied by a high pressure wave that may cause fire, damage to nearby objects or injury. To prevent the occurrence of such hazards under short circuit conditions, an appropriate fuse should be used in the battery circuit with the required current interrupting capacity (Termed AIC – Ampere interrupting Capacity).

Designed for the most demanding environment to provide high current protection for the tightest space constraints. Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs, and accessory circuits. The breaking capacity meets the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks.

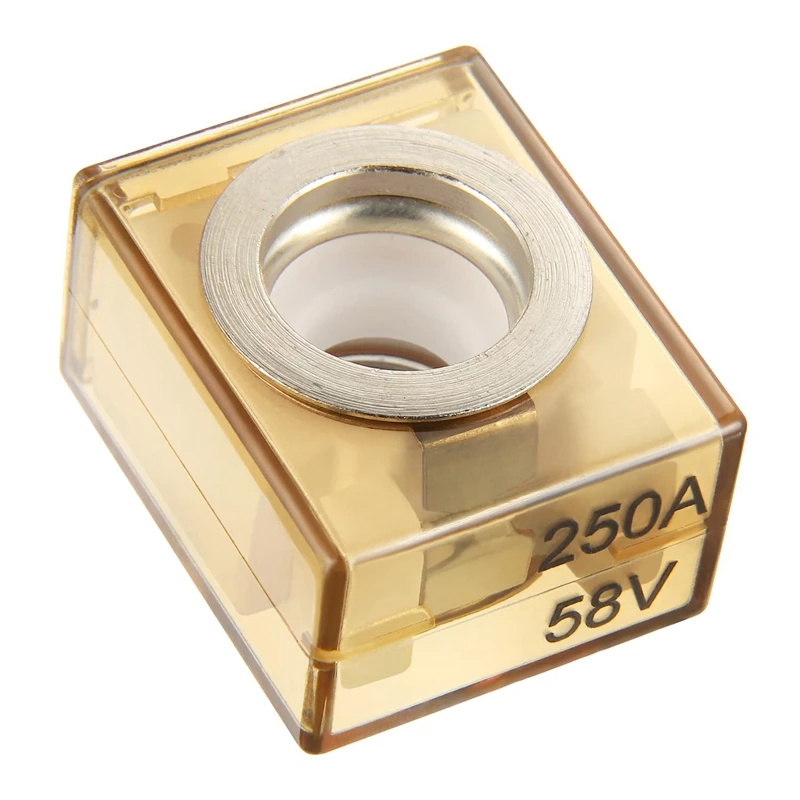

250 A current rating

58 VDC max voltage rating

Clamping Fixture Bar (CFBAR) has a base plate for connecting to the battery stud (with a hole to accommodate battery stud of up to stud size 3/8" / M10) and a stud (size M-8) for connecting the fuse MRBF and the battery cable.

Stainless Steel nut (thread size M8, will require ½" or 13 mm wrench for tightening), Flat Washer and Spring Washer

An Insulating Cap slides over the base plate of CFBAR and is used to insulate the exposed stud and the nut of the CFBARs Weather Proof (IP66)

Ignition protected as per SAE J1171

Complies with culus

Extensive amperage range 30A to 300A.

Voltage rating 58VDC max.

Ignition protected per SAE J1117.

Weatherproof (IP66).

Functional after 500 hours salt spray and salt fog test.

Clear element window, visual indication of blown condition.

Colour coded for easy amperage identification.

Several mounting options available. Accept mounting terminal size M8 max.

Performance requirements per ISO8820-6.

MRBF Marine Rated Battery Fuse

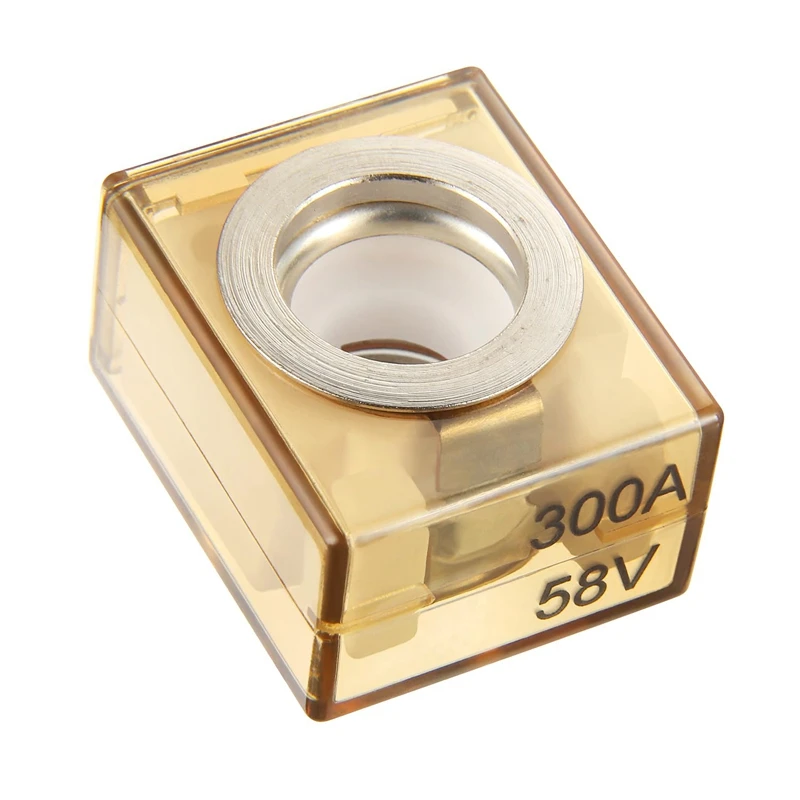

58V 300A Battery Fuse
